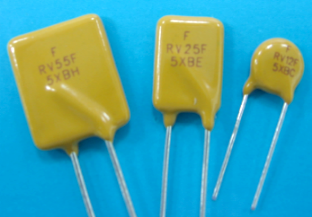

Radial Leaded PPTC - FRV Series                   ¡° RoHS Compliant/(Lead Free)

Application: Line Voltage Power Supply, Transformer and Appliances
Product Features: Low hold current, Solid state, Radial leaded product ideal for up to 265VAC/DC
Operation Current: 50mA~550mA
Maximum Operating Voltage: 240VAC/DC
Maximum Interrupt Voltage: 265VAC/DC
Temperature Range: -40¢XC to 85¢XC
Agency Recognition: UL, C-UL¡®TÜV pending


¡@


Part
Number

Hold
Current

Trip
Current

Max.Time
to Trip

Maximum
Current

Rated
Voltage

Typical
Power

Resistance Tolerance

RMIN

R1MAX

IH, A

IT, A

at 5xIH

IMAX, A

VMAX,Vdc

Pd, W

ohms

ohms

FRV005-240

0.05

0.12

15.0

1.0

240

0.70

18.50

65.00

FRV008-240

0.08

0.19

15.0

1.2

240

0.80

7.40

26.00

FRV012-240

0.12

0.30

15.0

1.2

240

1.00

3.00

12.00

FRV016-240

0.16

0.37

15.0

2.0

240

1.40

2.50

7.80

FRV025-240

0.25

0.56

18.5

3.5

240

1.50

1.30

3.80

FRV033-240

0.33

0.74

18.5

4.5

240

1.70

0.83

2.60

FRV040-240

0.40

0.90

24.0

5.5

240

2.00

0.60

1.90

FRV055-240

0.55

1.25

26.0

7.0

240

3.40

0.45

1.45


IH=Hold current-maximum current at which the device will not trip at 23¢J still air.
IT=Trip current-minimum current at which the device will always trip at 23¢J still air.
V MAX=Maximum voltage device can withstand without damage at its rated current.
I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX).
Pd=Typical power dissipated from device when in tripped state in 23¢J still air environment.
RMIN=Minimum device resistance at 23¢J.
R1MAX=Maximum device resistance at 23¢J, 1 hour after tripping.
Physical specifications:
Lead material: FRV005-240F~FRV016-240F Tin plated copper, 24AWG.
                           FRV025-240F~FRV040-240F Tin plated copper, 22AWG.
                           FRV055-240F Tin plated copper, 20AWG.
Soldering characteristics: MIL-STD-202, Method 208E.
Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement.

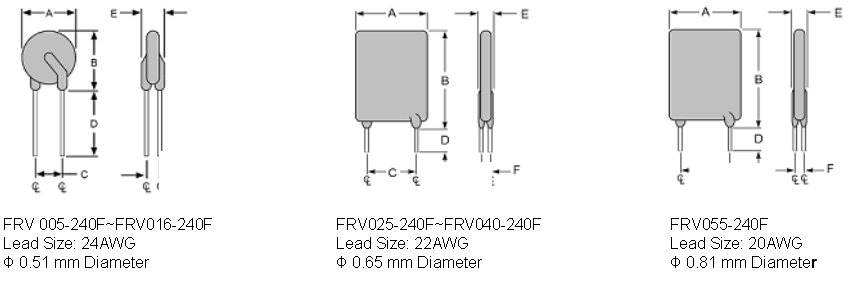

Part
Number

A

B

C

D

E

Maximum

Maximum

Typical

Minimum

Maximum

FRV005-240

8.3

10.7

5.1

7.6

3.8

FRV008-240

8.3

10.7

5.1

7.6

3.8

FRV012-240

8.3

10.7

5.1

7.6

3.8

FRV016-240

9.9

12.5

5.1

7.6

3.8

FRV025-240

9.6

17.4

5.1

7.6

3.8

FRV033-240

11.4

16.5

5.1

7.6

3.8

FRV040-240

11.5

19.5

5.1

7.6

3.8

FRV055-240

14.0

21.7

5.1

7.6

4.1

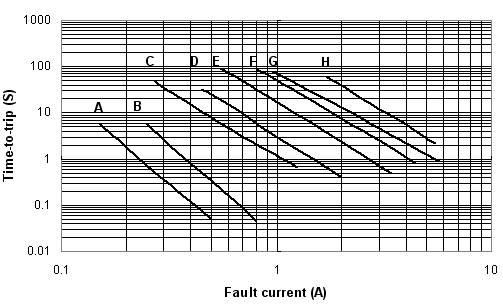

A= FRV005-240

B= FRV008-240

C= FRV012-240

D= FRV016-240

E= FRV025-240

F= FRV033-240

G= FRV040-240

H= FRV055-240















P/N

Pcs /Bag

Reel/Tape

FRV005-240

500

2.5K

FRV008-240

500

2.5K

FRV012-240

500

2.5K

FRV016-240

500

2.5K

FRV025-240

500

2K

FRV033-240

500

2K

FRV040-240

500

2K

FRV055-240

500

1K
