Application: Wide variety of electronic equipment
Product Features: Low hold current, Solid state
Radial-leaded product ideal for up to 120VDC/ 120VAC
Operation Current: 100mA~3.75A
Maximum Voltage: 120VDC/120VAC
Temperature Range: -40°C to 85°C
Agency Recognition: UL, C-UL & TÜV pending





Part
Number		 Hold
Current		 Trip
Current		 Max.Time
to Trip
 Maximum
Current
 Rated
Voltage
 Typical
Power
 Resistance Tolerance
RMIN R1MAX
IH, A IT, A at 5xIH IMAX, A VMAX,Vdc Pd, W ohms ohms
FRA010-120 0.10 0.20 4.0 2.0 120 0.57 2.50 7.50
FRA017-120 0.17 0.34 3.0 2.0 120 0.59 2.00 7.00
FRA020-120 0.20 0.40 2.2 2.0 120 0.62 1.83 4.40
FRA025-120 0.25 0.50 2.5 3.0 120 0.68 1.25 3.00
FRA030-120 0.30 0.60 3.0 3.0 120 0.74 0.88 2.10
FRA040-120 0.40 0.80 3.8 3.0 120 0.84 0.55 1.29
FRA050-120 0.50 1.00 4.0 3.0 120 1.16 0.50 1.17
FRA065-120 0.65 1.30 5.3 3.0 120 1.32 0.31 0.72
FRA075-120 0.75 1.50 6.3 5.0 120 1.38 0.25 0.60
FRA090-120 0.90 1.80 7.2 5.0 120 1.49 0.20 0.47
FRA110-120 1.10 2.20 8.2 5.0 120 2.25 0.15 0.38
FRA135-120 1.35 2.70 9.6 8.0 120 2.55 0.12 0.3
FRA160-120 1.60 3.20 11.4 8.0 120 2.85 0.09 0.22
FRA185-120 1.85 3.70 12.6 8.0 120 3.15 0.08 0.19
FRA250-120 2.50 5.00 15.6 12.0 120 3.75 0.05 0.13
FRA300-120 3.00 6.00 19.8 15.0 120 4.2 0.04 0.10
FRA375-120 3.75 7.50 24.0 15.0 120 4.8 0.03 0.08

IH=Hold current-maximum current at which the device will not trip at 23°C still air.
IT=Trip current-minimum current at which the device will always trip at 23°C still air.
V MAX=Maximum voltage device can withstand without damage at its rated current.
I MAX= Maximum fault current device can withstand without damage at rated voltage (V max).
Pd=Typical power dissipated from device when in the tripped state in 23°C still air environment.
RMIN=Minimum device resistance at 23°C.
R1MAX=Maximum device resistance at 23°C, 1 hour after tripping .

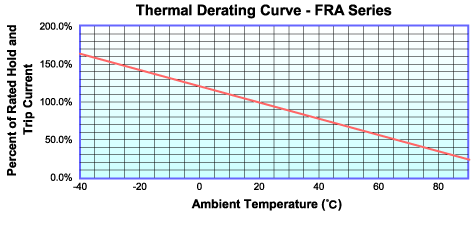

Physical specifications:
Lead material: Tin plated copper, 24 AW
Soldering characteristics: FRA010~FRA090 Tin plated copper, 22 AWG.
FRA110~FRA375 Tin plated copper, 20 AWG.
Soldering characteristics: MIL-STD-202, Method 208E.
Insulating coating:Flame retardant epoxy, meet UL-94V-0 requirement.




FRA 010-120 ~ FRA 090-120
Lead Size: 22AWG,
Ø 0.65 mm Diameter		 FRA 110-120 ~ FRA 375-120
Lead Size: 20AWG,
Ø 0.81 mm Diameter
Part
Number
A
B
C
D
E
 F
Maximum
Maximum
Typical
Minimum
Maximum
 Typical
FRA010-120 7.9 12.7 5.1 7.6 5.0 3.0
FRA017-120 7.9 12.7 5.1 7.6 5.0 3.0
FRA020-120 7.9 12.2 5.1 7.6 5.0 3.0
FRA025-120 7.9 12.7 5.1 7.6 5.0 3.0
FRA030-120 7.9 13.0 5.1 7.6 5.0 3.0
FRA040-120 8.2 14.2 5.1 7.6 5.0 3.0
FRA050-120 9.2 14.9 5.1 7.6 5.0 3.0
FRA065-120 9.7 14.9 5.1 7.6 5.0 3.0
FRA075-120 10.6 15.5 5.1 7.6 5.0 3.0
FRA090-120 11.9 15.9 5.1 7.6 5.0 3.0
FRA110-120 13.3 18.3 5.1 7.6 5.0 3.0
FRA135-120 15.5 20.6 5.1 7.6 5.0 3.0
FRA160-120 17.5 22.5 5.1 7.6 5.0 3.0
FRA185-120 19.9 24.9 5.1 7.6 5.0 3.0
FRA250-120 22.5 27.5 10.2 7.6 5.0 3.0
FRA300-120 25.5 30.0 10.2 7.6 5.0 3.0
FRA375-120 29.5 34.0 10.2 7.6 5.0 3.0

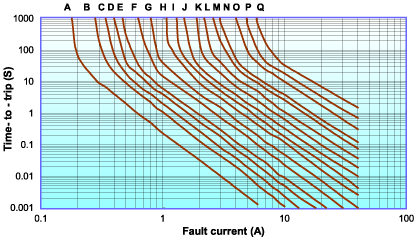

A = FRA010-120
B = FRA017-120
C = FRA020-120
D = FRA025-120
E = FRA030-120
F = FRA040-120
G = FRA050-120
H = FRA065-120
I = FRA075-120
J = FRA090-120
K = FRA110-120
L = FRA135-120
M = FRA160-120
N = FRA185-120
O = FRA250-120
P = FRA300-120
Q = FRA375-120







P/N
Pcs /Bag
Reel/Tape
FRA010-120
300
1.5K
FRA017-120
300
1.5K
FRA020-120
300
1.5K
FRA025-120
300
1.5K
FRA030-120 300 1.5K
FRA040-120 300 1.5K
FRA050-120 300 1.5K
FRA065-120 300 1.5K
FRA075-120 300 1.5K

P/N
Pcs /Bag
Reel/Tape
FRA090-120
300
1.5K
FRA110-120
300
600
FRA135-120
200
600
FRA160-120 200 -----
FRA185-120 200 -----
FRA250-120 100 -----
FRA300-120 100 -----
FRA375-120 100 -----



Warning:
  1. Operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and/or flame.
  2. PPTC device are intended for occasional overcurrent protection. Application for repeated overcurrent condition and/or prolonged trip are not anticipated.
  3. Avoid contact of PPTC device with chemical solvent. Prolonged contact will damage the device performance.

All the specifications are subject to change without previous notice.
